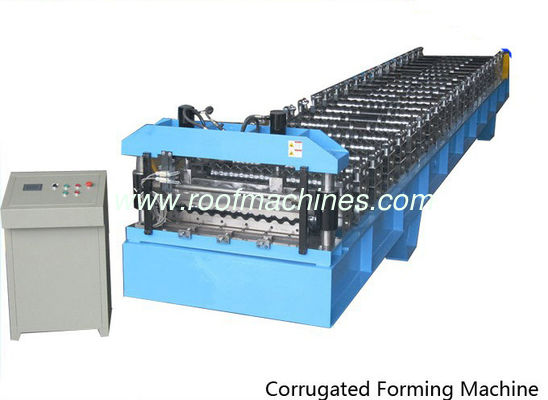

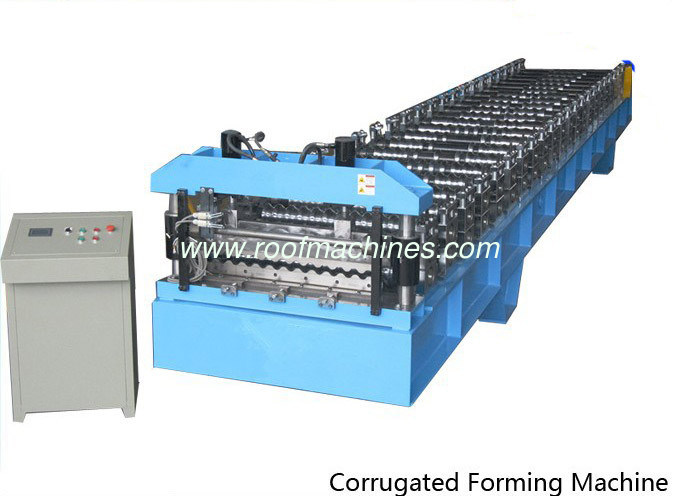

corrugated roof sheet extruder machine
1. Machine Parameters
|
Technical Data & Specification |
|
Productivity |
Corrugated sheet as the drawing |
|
Man Power Required |
One operator with one assinstant |
|
Set Up time |
15 mins |
|
Working Hours per Day |
8 to 16 |
|
Number of Stations |
18 sets |
|
Thickness |
0.3-0.8mm |
|
Main Power |
7.5 KW |
|
Shipment Packing |
one 40 FT containe |
|
Forming Speed |
20mtr./min(Not include shear) |
|
Line Direction |
Left to Right While Facing Operator Panel |
|
Overall Machine Length Required |
12.6m |
|
Approximate Machine Height |
1.5M |

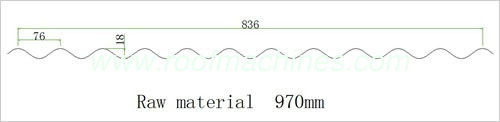

2. Drawing Profile showing
All technical parameters can be changed, according to user's need
Products Warranty12 months, and we will provide the technical support for the whole life of the equipment

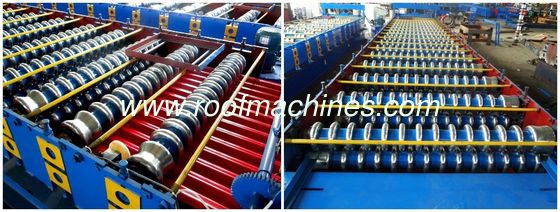

3. Machine Details
4. Machine Work Flow
5. Machine Components

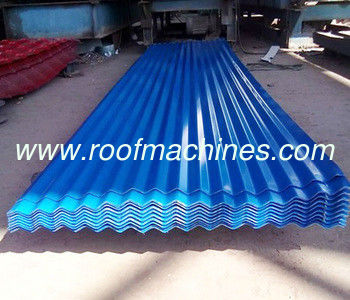

6. Machine Production Flow
7. Related Machine Showing
8. Certifaction shows

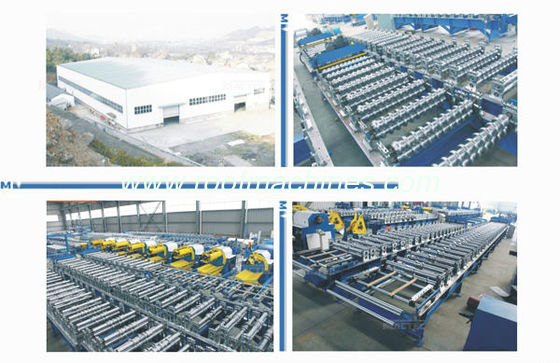

9. Factory Showing Time
