    Product Details:

    Place of Origin: China
    Brand Name: AISON
    Certification: CE, ISO9001
    Model Number: AISON-DF20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Contact us
    Packaging Details: CONTAINER
    Delivery Time: within 35-45 work days
    Payment Terms: TT
    Supply Ability: 15 SETS/month
    Material of Blade: Cr12
    Coil width: 914- 1250 mm
    Contact Now
    Detailed Product Description

    double roofing making machinery

    1. Machine Parameters



    No.

                  Main Parameter of  Roll Forming Manufacturing Machine

    1

    Suitable to process

    Color steel plate

    2

    Width of the plate

    1000-1250mm

    3

    Rollers

    Up layer:8-15 rows

    Down layer:17rows

    4

    Dimensions

    9600*1550*1910mm

    5

    Power

    4+4kw

    6

    Thickness of the plate

    0.3-0.8mm

    7

    Productivity

    15- 20m/min

    8

    Material of the cutting blade

    Cr12

    9

    Diameter of the roller

    Φ90mm

    10

    Weight

    About 6.1T

    11

    Voltage

    380V 50Hz 3phases

    15

    Control system

    PLC control

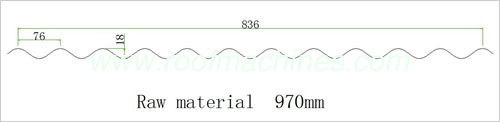

     2. Drawing Profile showing

    double roofing making machinery

    All technical parameters can be changed, according to user's need

    Products Warranty12 months, and we will provide the technical support for the whole life of the equipment

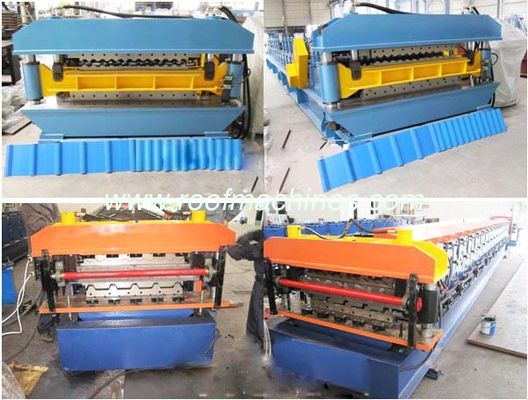

    3. Machine Details

    double roofing making machinery

    double roofing making machinery

    double roofing making machinery



    4. Machine Work Flow

    double roofing making machinery

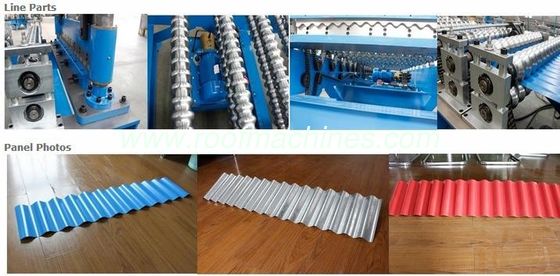

    5.  Machine Components

    double roofing making machinery



    6.  Machine Production Flow

    double roofing making machinery

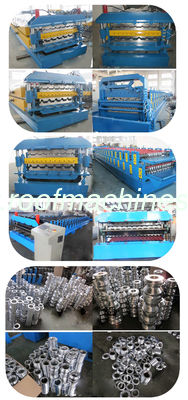

    7.  Related Machine Showing



    double roofing making machinery





    8.  Certifaction shows

    double roofing making machinery



    9.  Factory Showing Time

    double roofing making machinery



    double roofing making machinery
