    Product Details:

    Place of Origin: China
    Brand Name: AISON
    Certification: ISO9001, CE,
    Model Number: AISON-M26

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Contact us
    Packaging Details: seaworthy
    Delivery Time: 35-55 WORK DAYS
    Payment Terms: 50%TT, the balance before loading
    Supply Ability: 15 sets for 1 month
    Contact Now
    Detailed Product Description

    soil clay roof tiles making machines

    Description
    This Roof tile making machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, then continuous rolling and cold-forming, automatically cut to the size and output the finished panel to the supporter. Roof tile making equipment is really a new type of energy-saving and high-effective producing equipment for steel structure

    Technical Parameters for Roof Tile Making Machine

    NO Item Para Remark
    1 Suitable material Type Colored coating steel
    Thickness (mm) 0.5-0.6
    Yield Strength (Mpa) 230-300Mpa
    Width (mm) 1220
    Wt of the Coil (t) 5T
    OD Φ1350mm
    ID Φ508 mm/Φ610mm
    2 Material of rollers No45 chromeplate
    3 Forming Speed (m/min) 3-4 Not including cutting time
    4 Power Source AC380V ,50Hz, 3 Phase
    5 Total power(kw) About13
    6 Dimension (L×W×H, m) See the layout

    Working Process for Roof Tile Making Machine

    soil clay roof tiles making machines



    Components Parts of the Roof Tile Making Equipment

    Name Model/Name Quantity Technical Description Components show
    1.Decoiler system 5T Cantilever type hydraulic decoiler 1set Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control soil clay roof tiles making machines
    2.Main forming system Pre-cutting device 1set 1. Roller material:No.45 steel with surface hard chrome painted. 2. Roller inner supporting structure type: guide column 3. Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4.Cutting blade material Cr12 quenched treatment
    Guiding device 1set soil clay roof tiles making machines
    Roll forming system 1set soil clay roof tiles making machines
    Punching Die 1set soil clay roof tiles making machines
    Post-cutting device 1set
    3. Output system Supporting Table 1sets For supporting the finished panel. soil clay roof tiles making machines
    4. Hydraulic system 1set Hydraulic station soil clay roof tiles making machines
    5. Electric control system 1set PLC Control, encoder automatic cutting in length Operation stage: button AC frequency for adjusting the speed

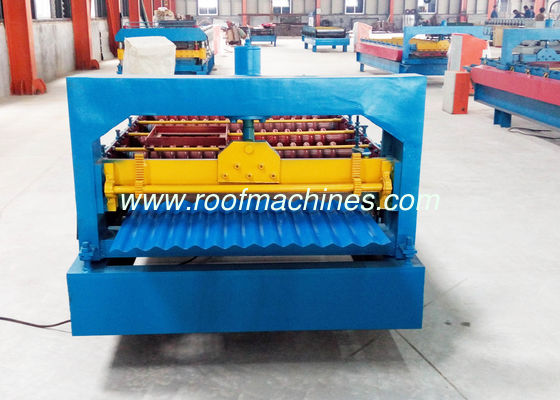

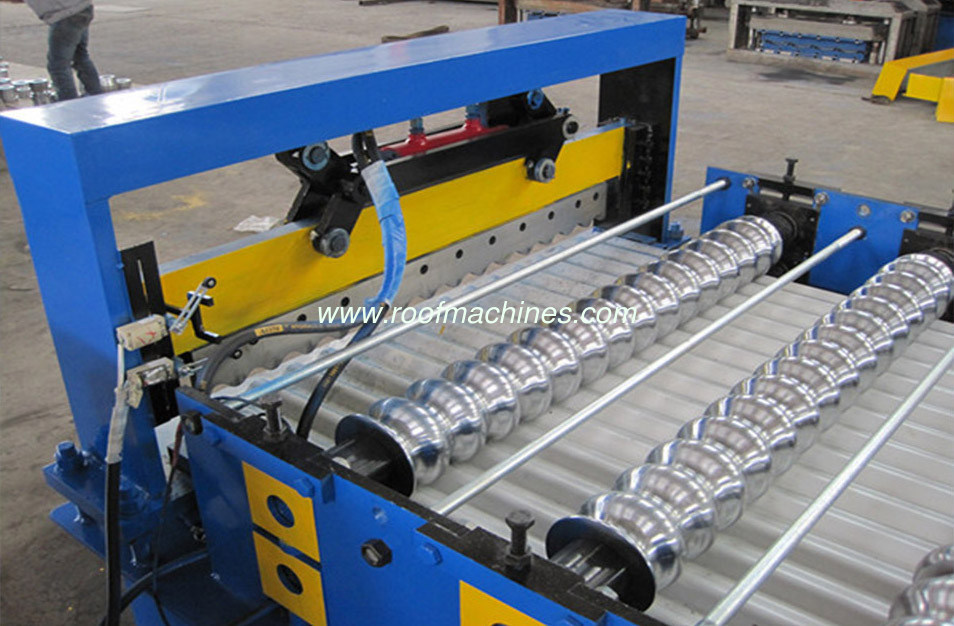

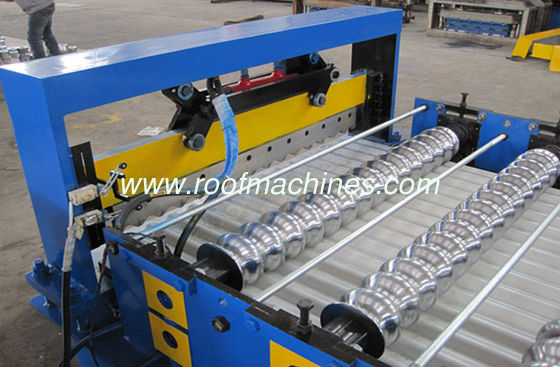

    Roof Deck Panel Roll Forming Machine Pictures

    soil clay roof tiles making machines

    soil clay roof tiles making machines

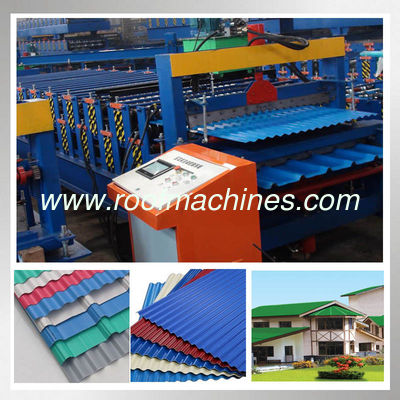

    Finished products show ( Roof tile)

    soil clay roof tiles making machines
