steel roof tile sheet forming machine

Product Details:

Place of Origin:	China
Brand Name:	AISON
Certification:	ISO9001, CE,
Model Number:	AISON-M24

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Contact us
Packaging Details:	seaworthy
Delivery Time:	35-55 WORK DAYS
Payment Terms:	50%TT, the balance before loading
Supply Ability:	15 sets for 1 month

Contact Now

Detailed Product Description

steel roof tile sheet forming machine

Description
This Roof tile making machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, then continuous rolling and cold-forming, automatically cut to the size and output the finished panel to the supporter. Roof tile making equipment is really a new type of energy-saving and high-effective producing equipment for steel structure

Technical Parameters for Roof Tile Making Machine

NO	Item		Para	Remark
1	Suitable material	Type	Colored coating steel
		Thickness (mm)	0.5-0.6
		Yield Strength (Mpa)	230-300Mpa
		Width (mm)	1220
		Wt of the Coil (t)	5T
		OD	Φ1350mm
		ID	Φ508 mm/Φ610mm
2	Material of rollers		No45 chromeplate
3	Forming Speed (m/min)		3-4	Not including cutting time
4	Power Source		AC380V ,50Hz, 3 Phase
5	Total power(kw)		About13
6	Dimension (L×W×H, m)		See the layout

Working Process for Roof Tile Making Machine

Components Parts of the Roof Tile Making Equipment

Name	Model/Name	Quantity	Technical Description	Components show
1.Decoiler system	5T Cantilever type hydraulic decoiler	1set	Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control

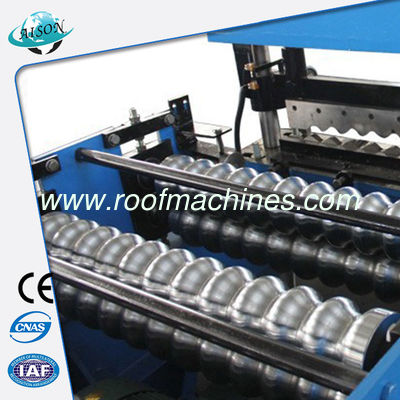

2.Main forming system	Pre-cutting device	1set	1. Roller material:No.45 steel with surface hard chrome painted. 2. Roller inner supporting structure type: guide column 3. Planetary gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 4.Cutting blade material Cr12 quenched treatment
	Guiding device	1set
	Roll forming system	1set
	Punching Die	1set
	Post-cutting device	1set
3. Output system	Supporting Table	1sets	For supporting the finished panel.
4. Hydraulic system		1set	Hydraulic station
5. Electric control system		1set	PLC Control, encoder automatic cutting in length Operation stage: button AC frequency for adjusting the speed

Roof Deck Panel Roll Forming Machine Pictures

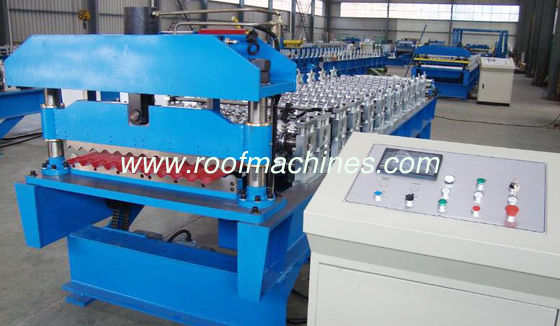

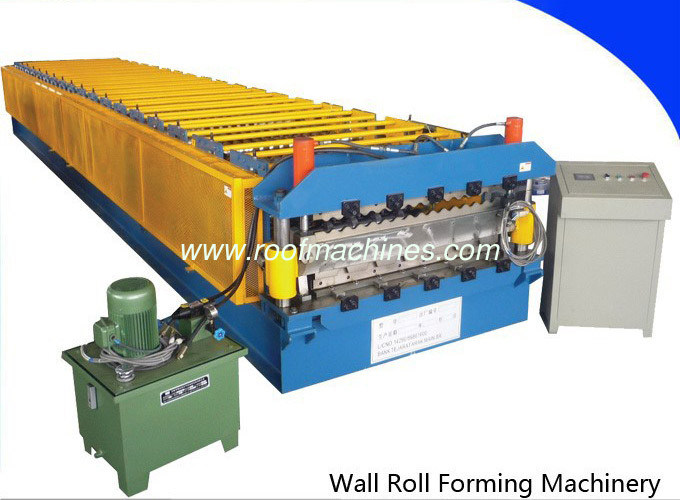

steel roof tile sheet forming machine

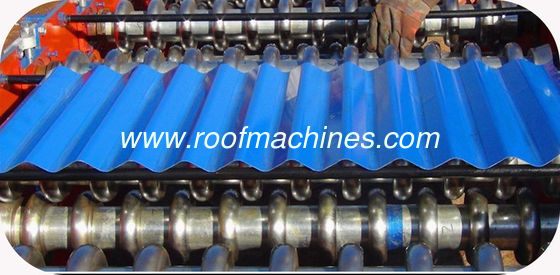

Finished products show ( Roof tile)
